THE SHOOTER® 24” Model

Innovative technology, proven effective and trustworthy.

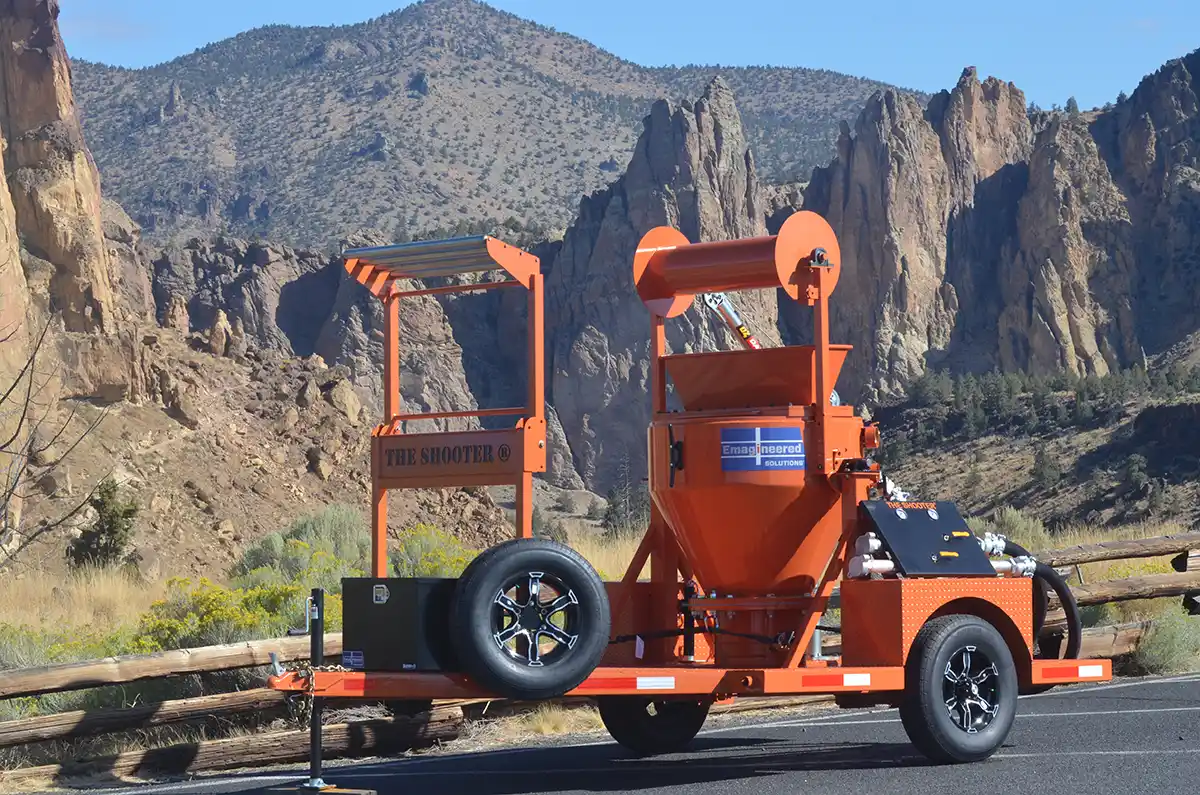

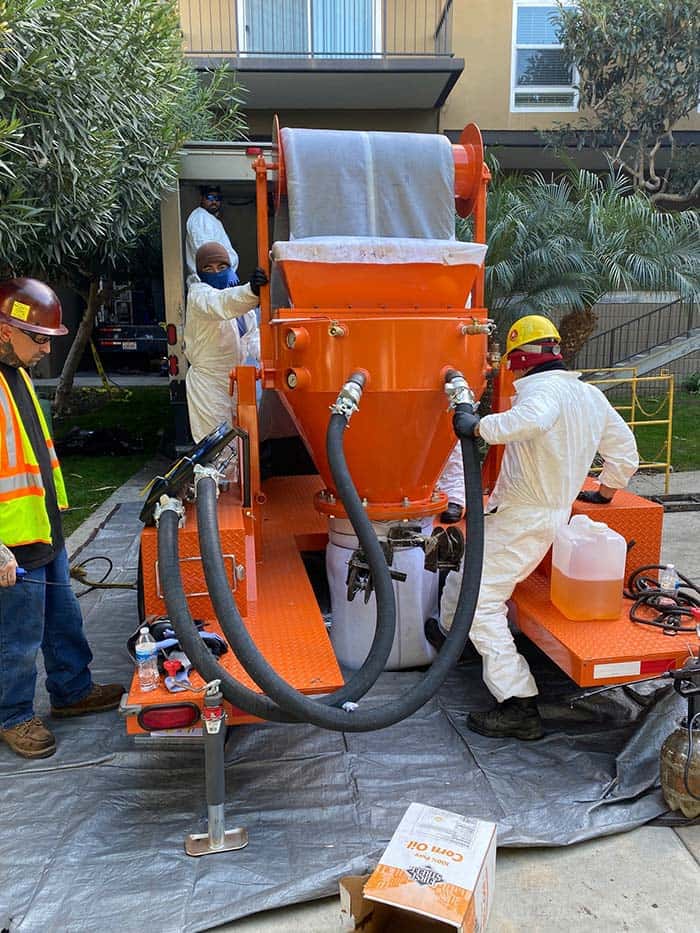

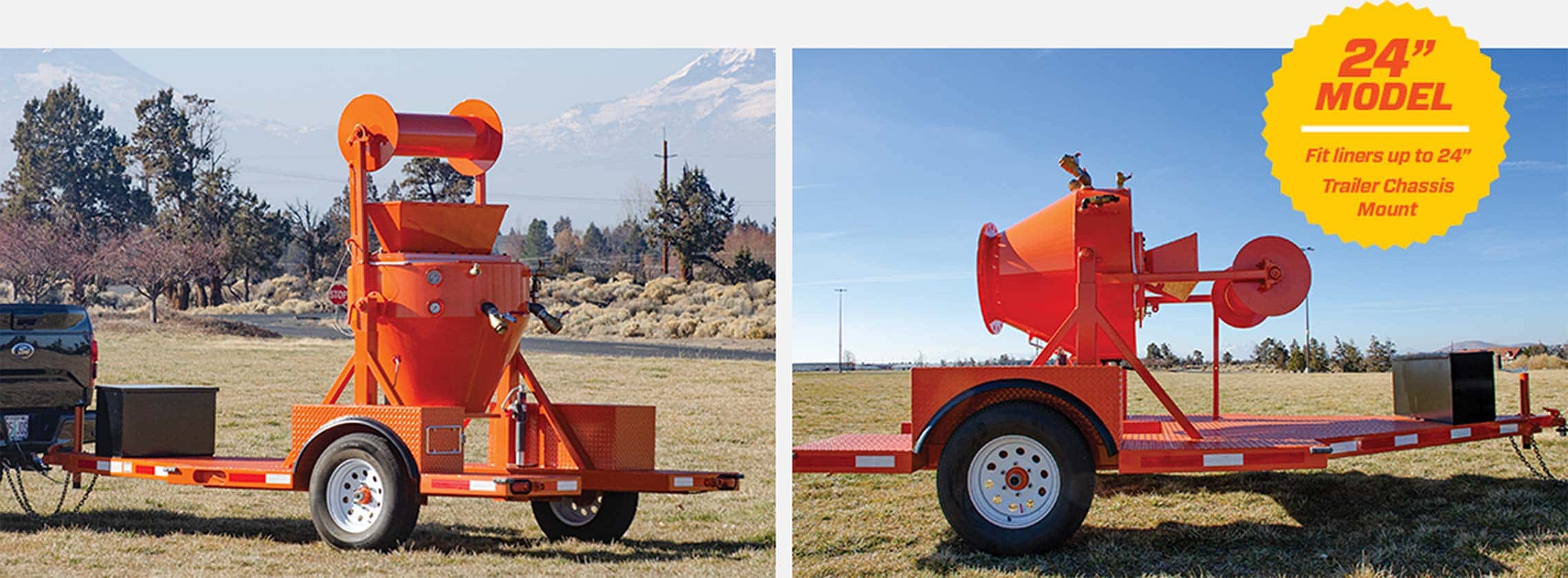

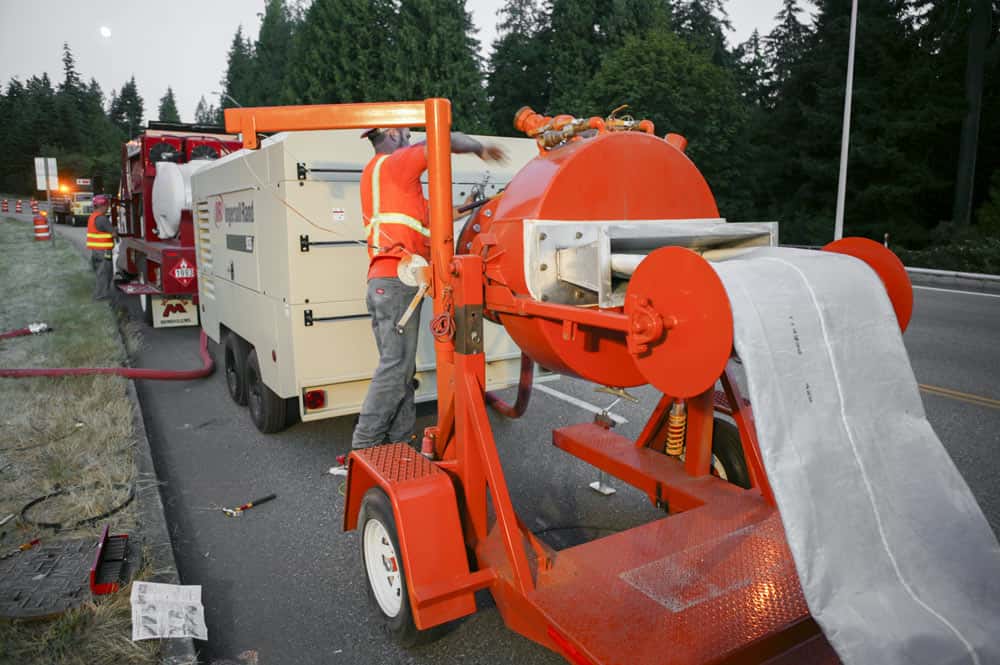

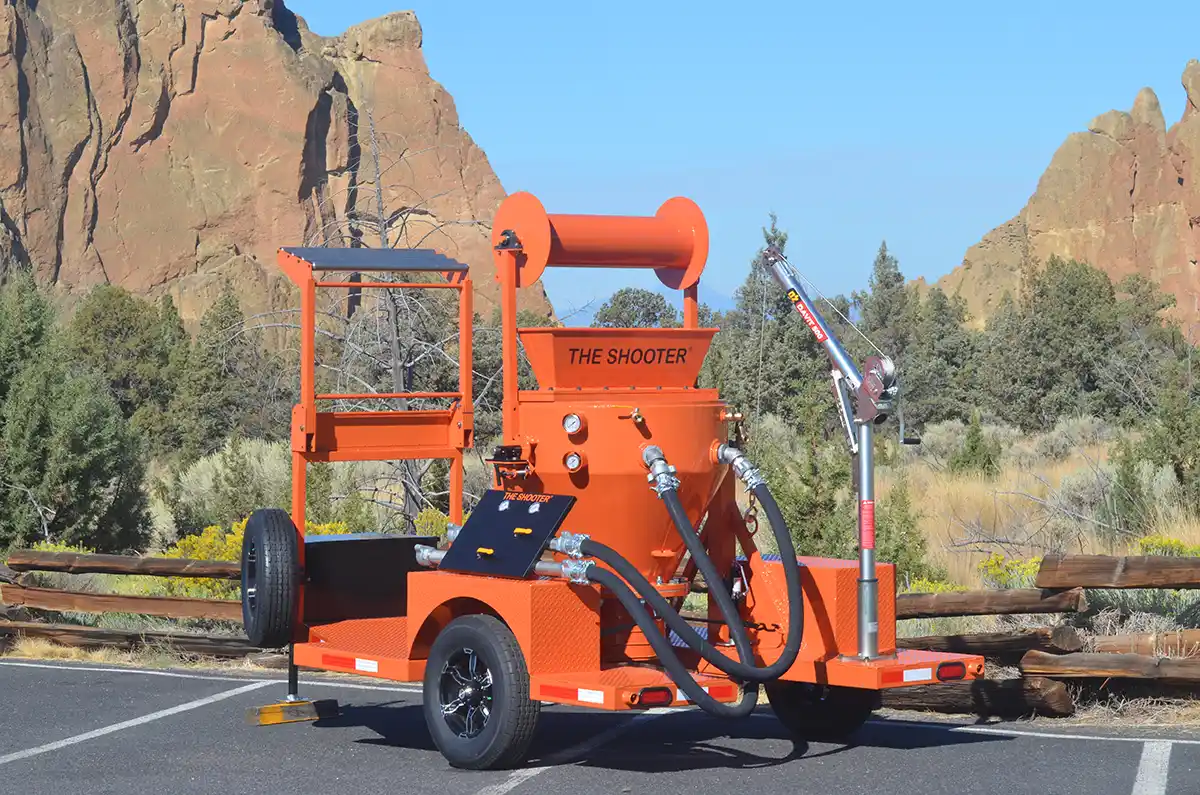

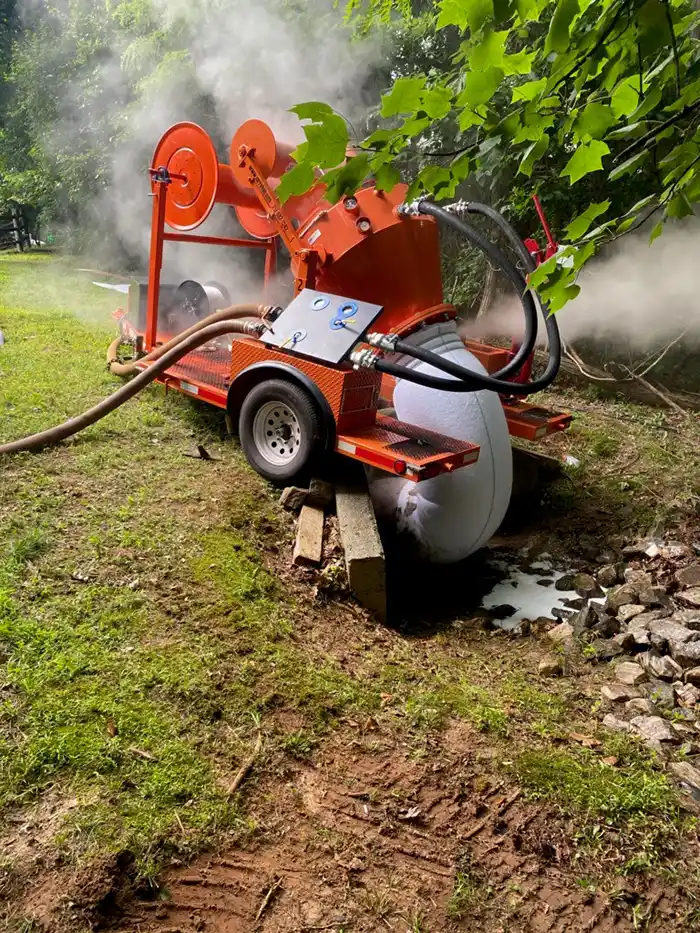

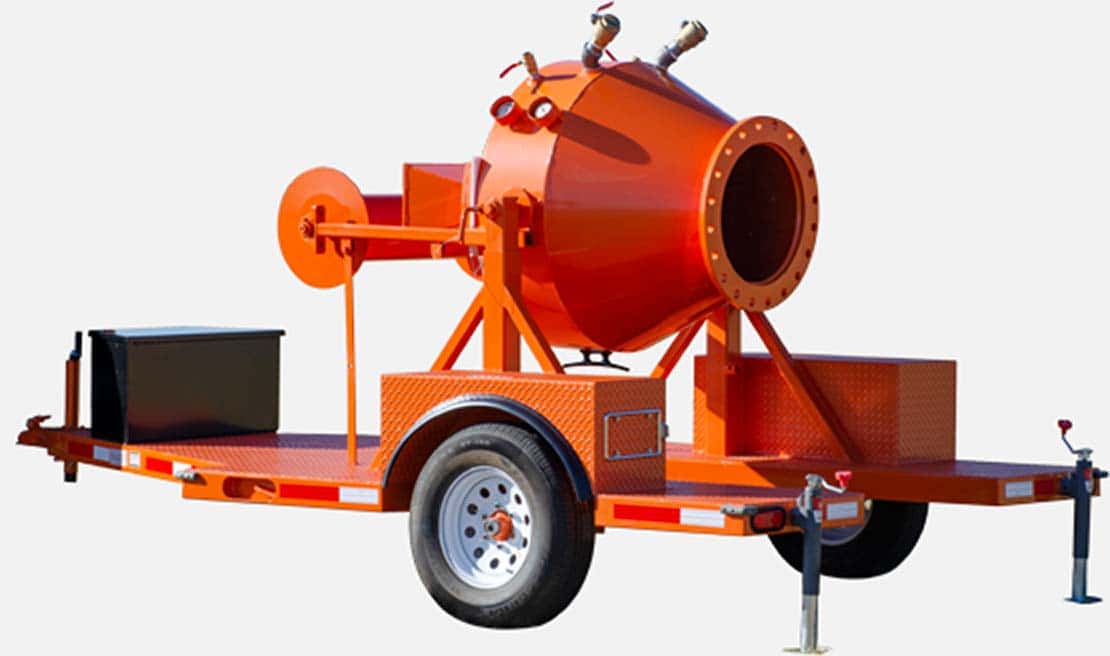

Our larger trailer-mounted THE SHOOTER® 24” Model inverts and cures liners for 15” through 24” pipe. An optional conversion kit allows the 24“ Shooter to invert liner 6” through 12” and cure through the supplied steam cap, while curing the larger liners is done directly through the trailer-mounted machine. Multiple operating positions allow work over the manhole or next to it and THE SHOOTER® 24 is easily transported by vehicles with a standard trailer hitch.

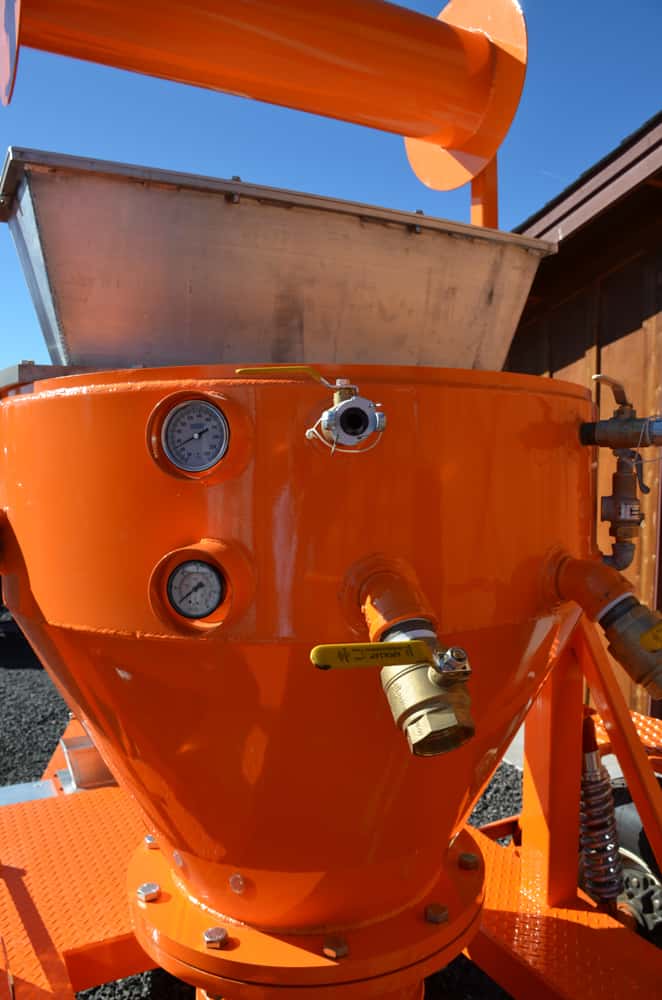

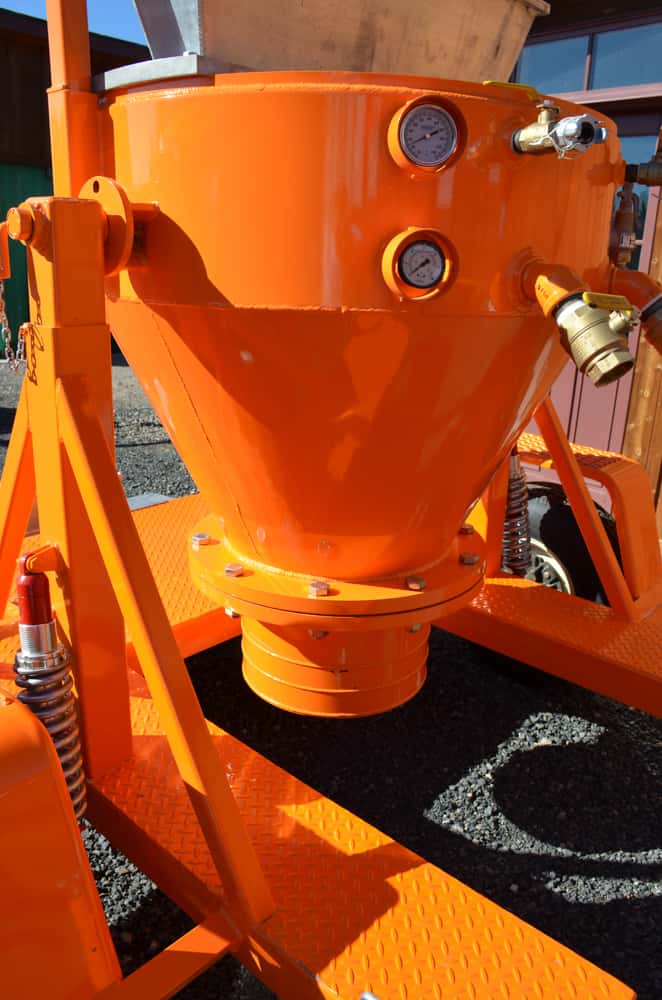

THE SHOOTER® 24 is an efficient inversion machine that is easy to use. Pressure and temperature gauges allow close monitoring of air and steam and two sizes of air/steam valves add flexibility for the operator. The knife gate prevents air loss after the tail passes. Lubrication is performed manually rather than in an automated fashion as with THE SHOOTER® 12.




  • For 15", 18", 21" and 24” liners
  • All new suspension system & trailer design
  • Continuous air-inversion
  • Cure with air/steam

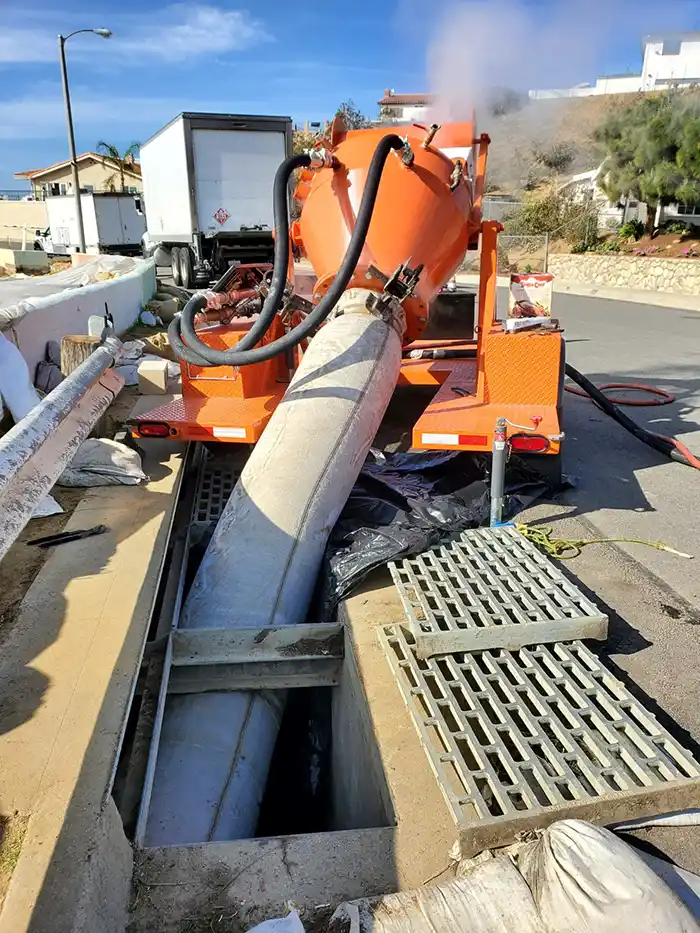

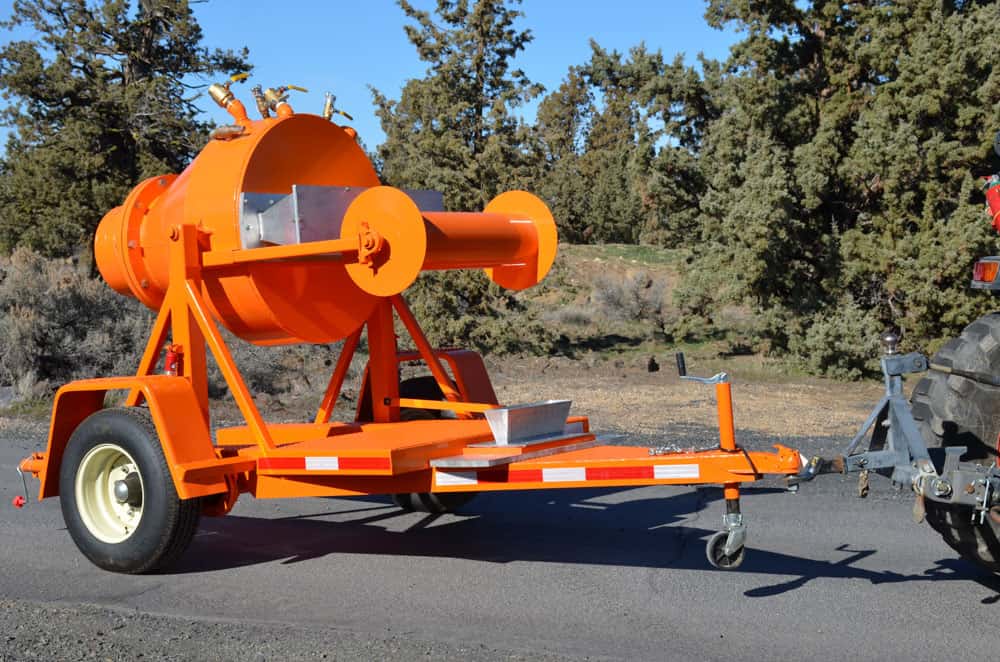

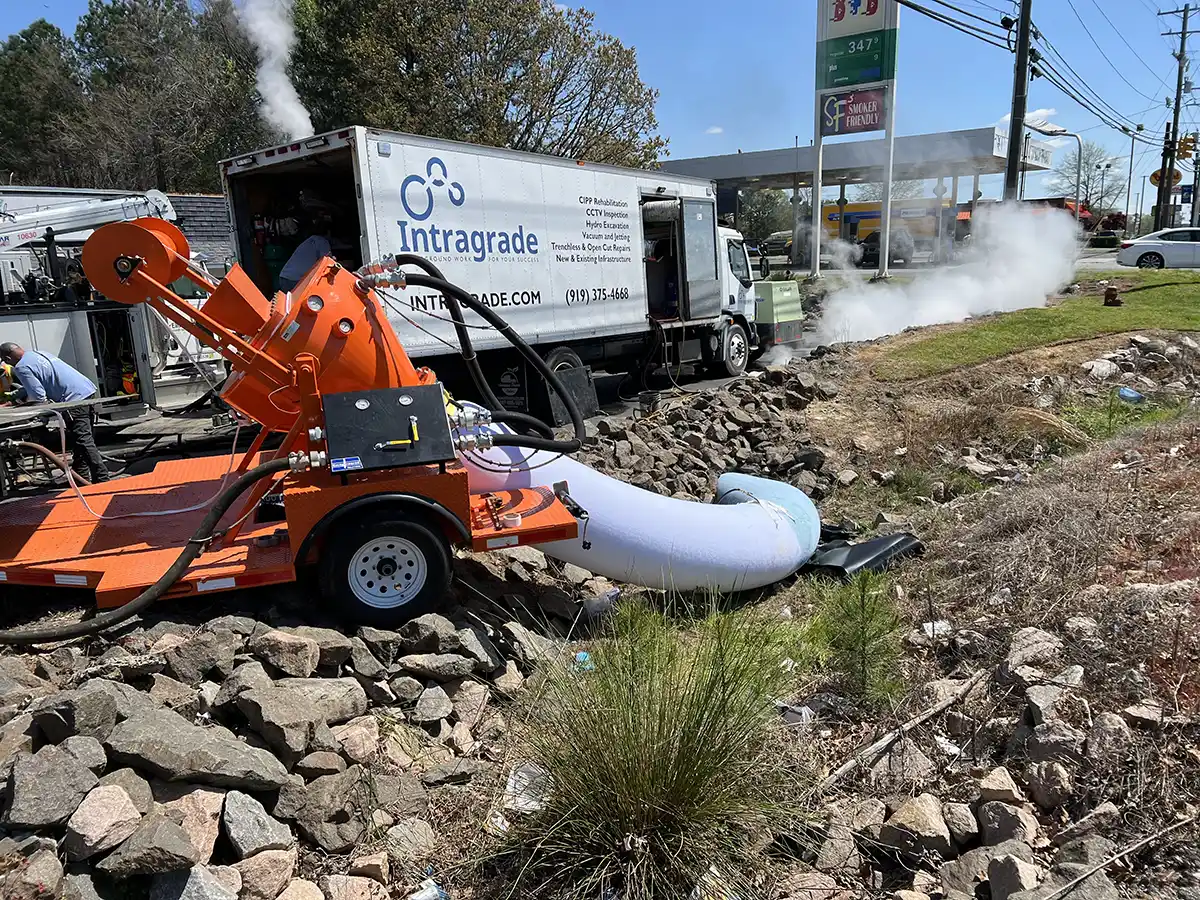

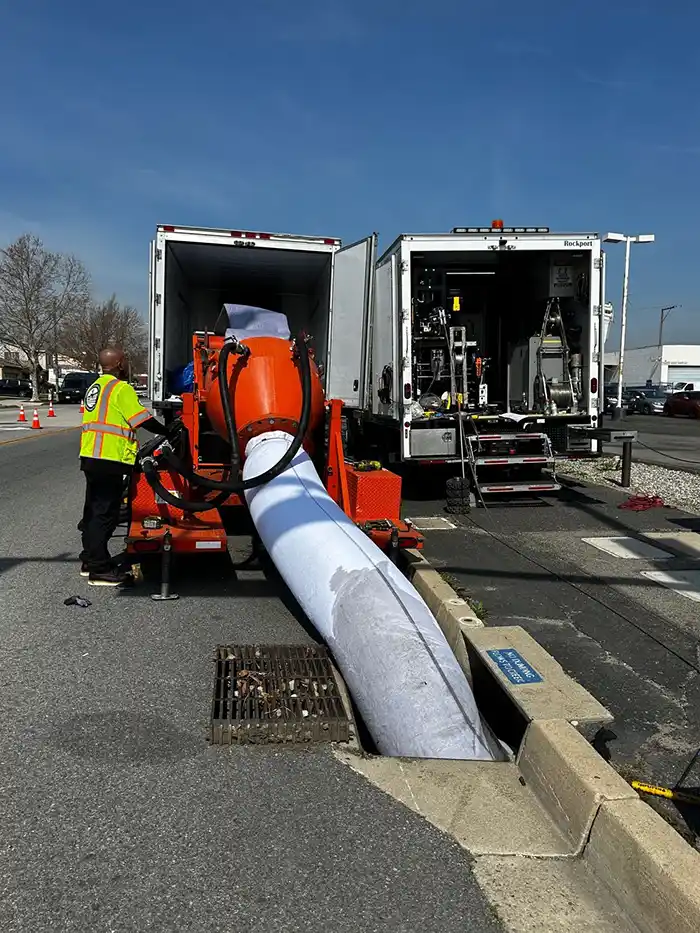

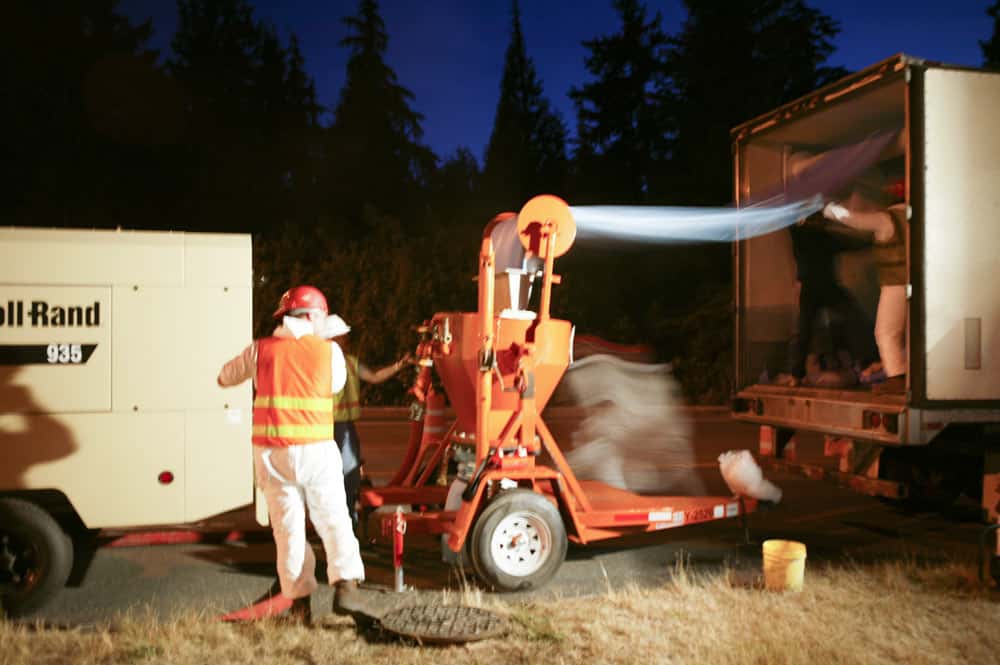

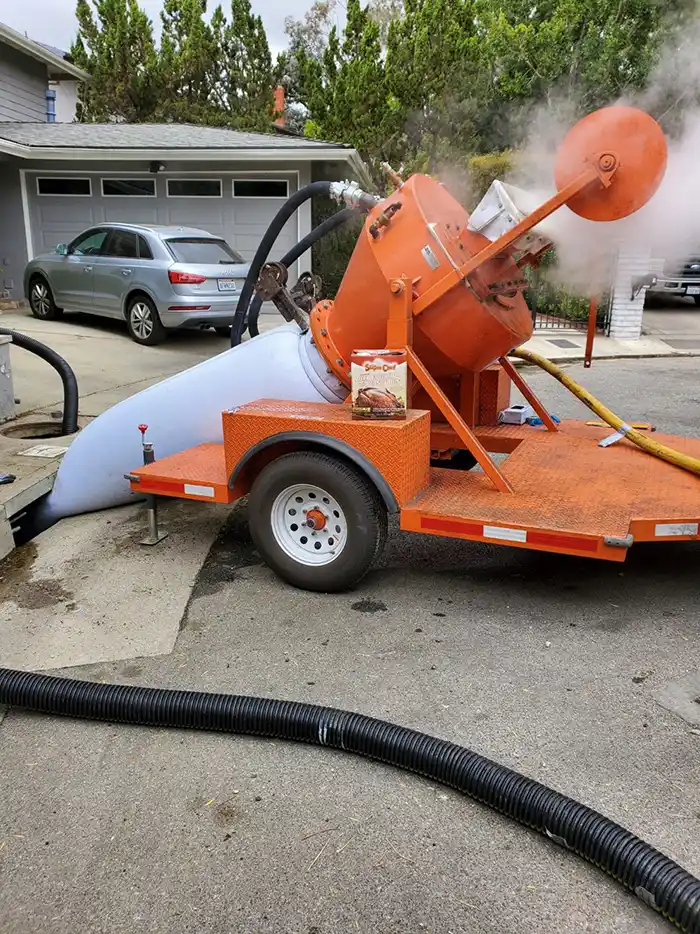

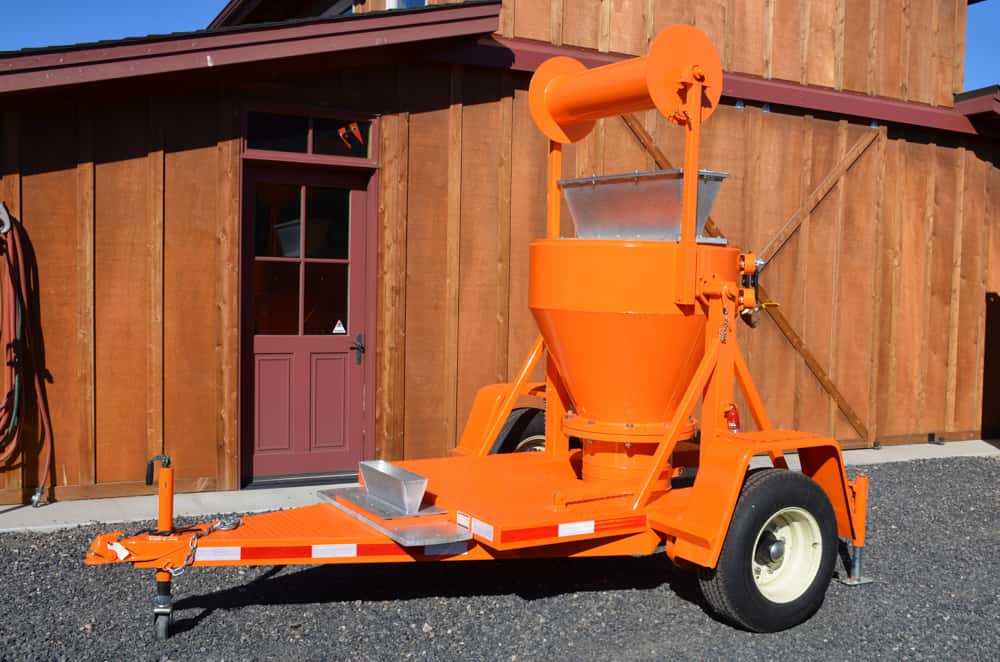

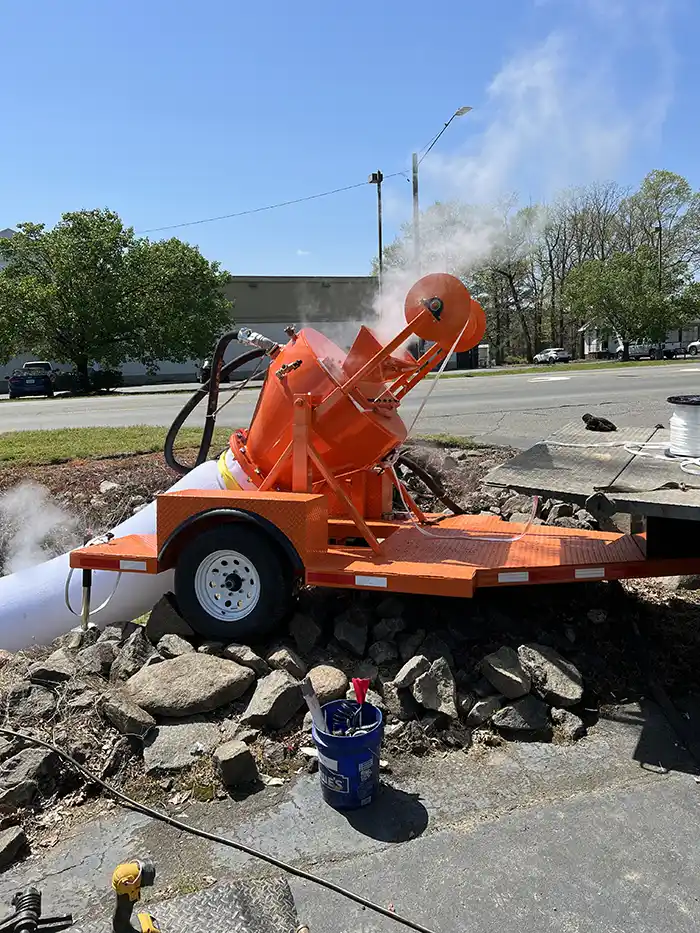

  • Operates vertically and at a 45º angle

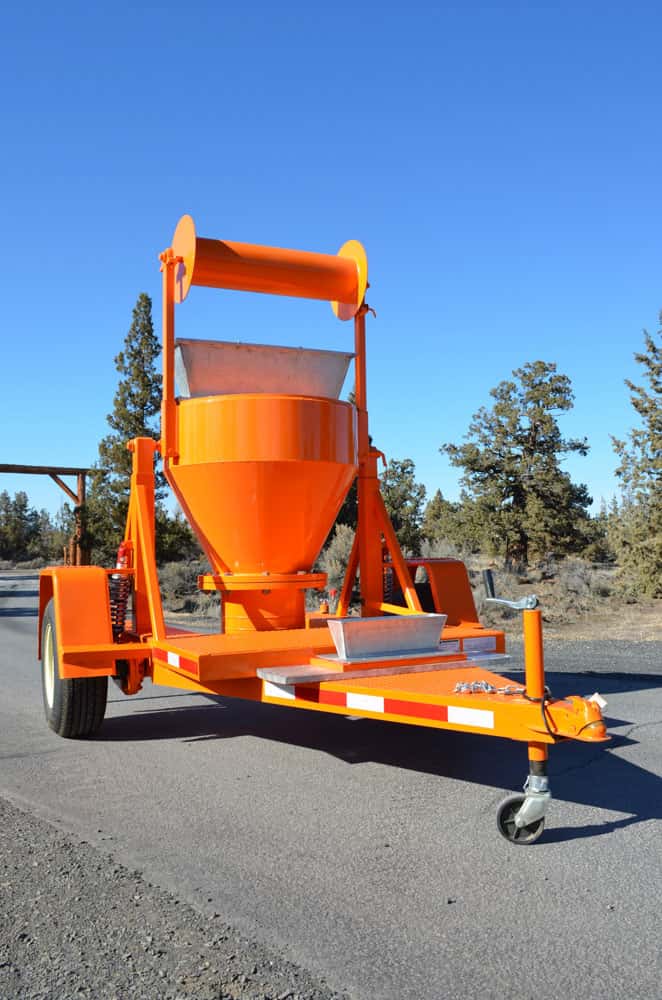

  • Trailer mounted for mobility
  • Solidly built for durability
  • Patented LIPs seal
  • Made in the USA


  • Cost-effective CIPP solution
  • Long lasting & durable trenchless repair
  • Fast, controlled, reliable inversion

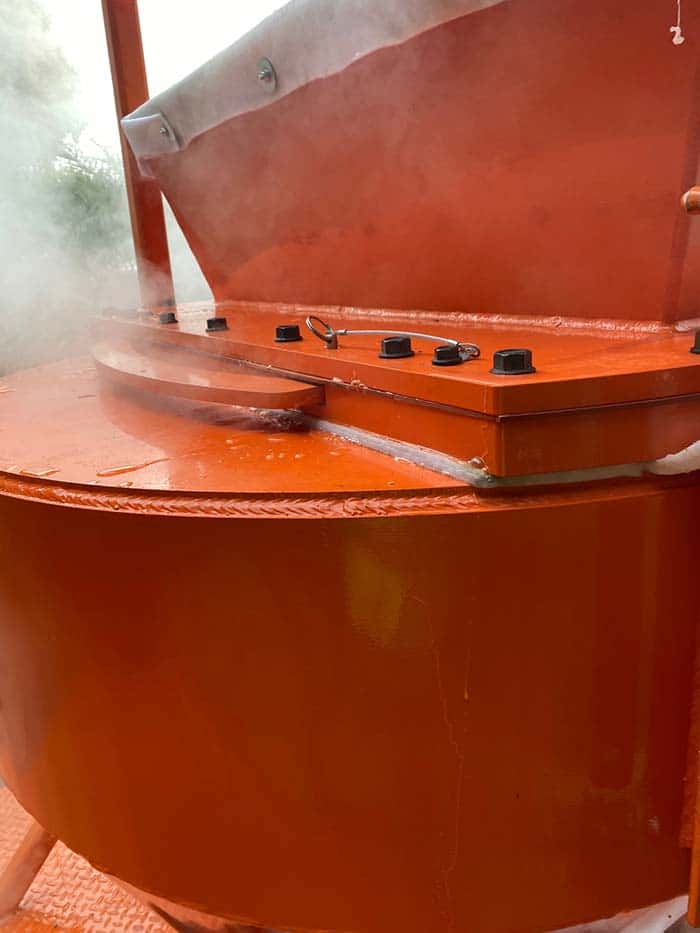

  • Knife gate prevents deflation
  • Easy set-up, shoot and cure
  • Complete multiple runs a day

THE SHOOTER® Accessories

THE SHOOTER® 24” Package:

  • Trailer-mounted THE SHOOTER® 24
  • Full set of hook ups for 15”, 18”, 21”and 24” pipe liners
  • One each 18” and 24” LIPs seals


Additional Accessories

  • Conversion kit for inverting 6”-12” liners. Includes hook-up nozzles for 6”, 8”, 10”, and 12” pipe liner, steam cap and one each of 6”, 8” and 12” LIPs seals.
  • LIPs for 15”, 18”, 21” and 24” pipe liners
  • Gaskets
  • Call Us About Additional Equipment
  • Full steam packages
